HB-40511 H-Shaped Barndominium Plan: The Kitchen And Primary Suite In One Owner's Wing
3,000–3,999 sq ft · 4 bed / 4.5 bath · 1 story · 70' × 60'
PDF plan set $1,349.99 · Five printed sets $1,599.99
HB-40511 gives the owners a wing of their own. The kitchen, dining room and primary suite share one side, so the adults never cross into the kids' side for anything.
Layout

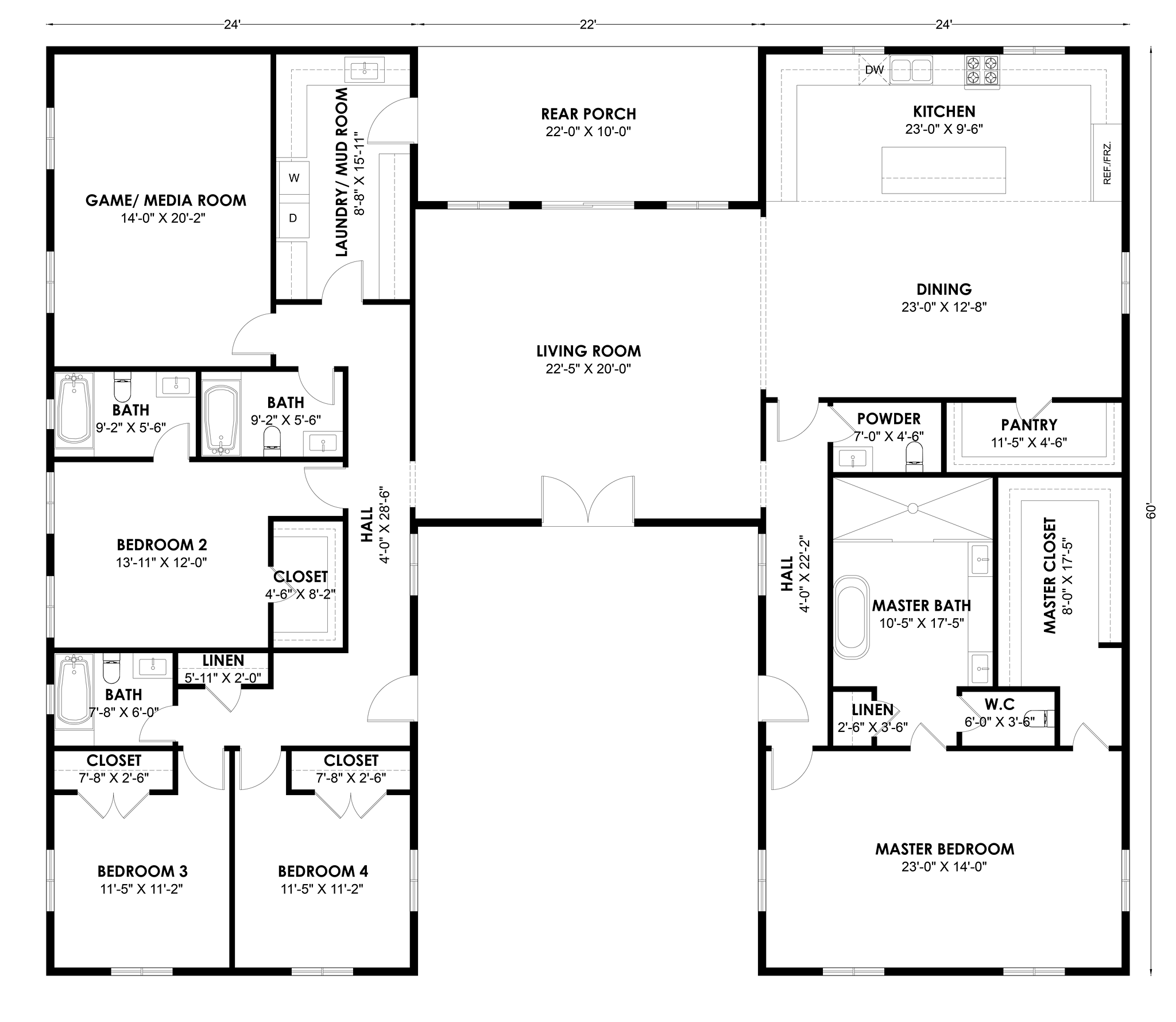

- Center: A 22' × 20' living room with double doors to the front courtyard and a 22' × 10' covered porch behind it.
- Right Wing: Kitchen, dining room and a 23' × 14' primary suite with a 17-foot bath and walk-in closet.
- Left Wing: Three bedrooms, three full baths, a 14' × 20' game and media room and a laundry-mudroom.
Who It Suits
Parents of older kids or teenagers who want the kids' wing to be a self-contained world.
Plan Specs
| Heated Area | 3,000–3,999 sq ft |
|---|---|
| Bedrooms | 4 |
| Bathrooms | 4.5 |
| Stories | 1 |
| Footprint | 70' wide × 60' deep |
| Garage | None (pair with a detached garage or shop) |
| Shape | True H: connector in the middle, courtyard front and back |
| PDF Plan Set (Single Build) | $1,349.99 |
| Five Printed Sets | $1,599.99 |
What It Costs To Build
At a standard finish of $80–$120 per square foot of heated space, 3,000–3,999 sq ft comes to about $240,000 – $479,880. A high-end finish at $150 or more per square foot starts around $450,000. Land, site work, septic and utilities are extra, and porches price closer to shell rates.
An H has much more exterior wall than a rectangle of the same size, so plan toward the top of the range. How the H shape affects cost.
Lot Width Needed
About 90 feet of buildable width once typical side setbacks are added. Setbacks vary widely by county, so confirm yours before you buy a plan.
Get The HB-40511 Plan Set
Plan sets include the cover sheet, floor plan, elevations, sections, foundation, roof plan and MEP sheets. The designer quotes modifications, such as an extra bath, an attached garage or a mirrored layout, within about 72 hours.
