HB-40506 H-Shaped Barndominium Plan: A Bath Beside Nearly Every Bedroom

HB-40506 bolts an extra bedroom block onto the outside of each wing. That makes it the widest plan in the series by a long way, and it puts a bath right beside nearly every bedroom.

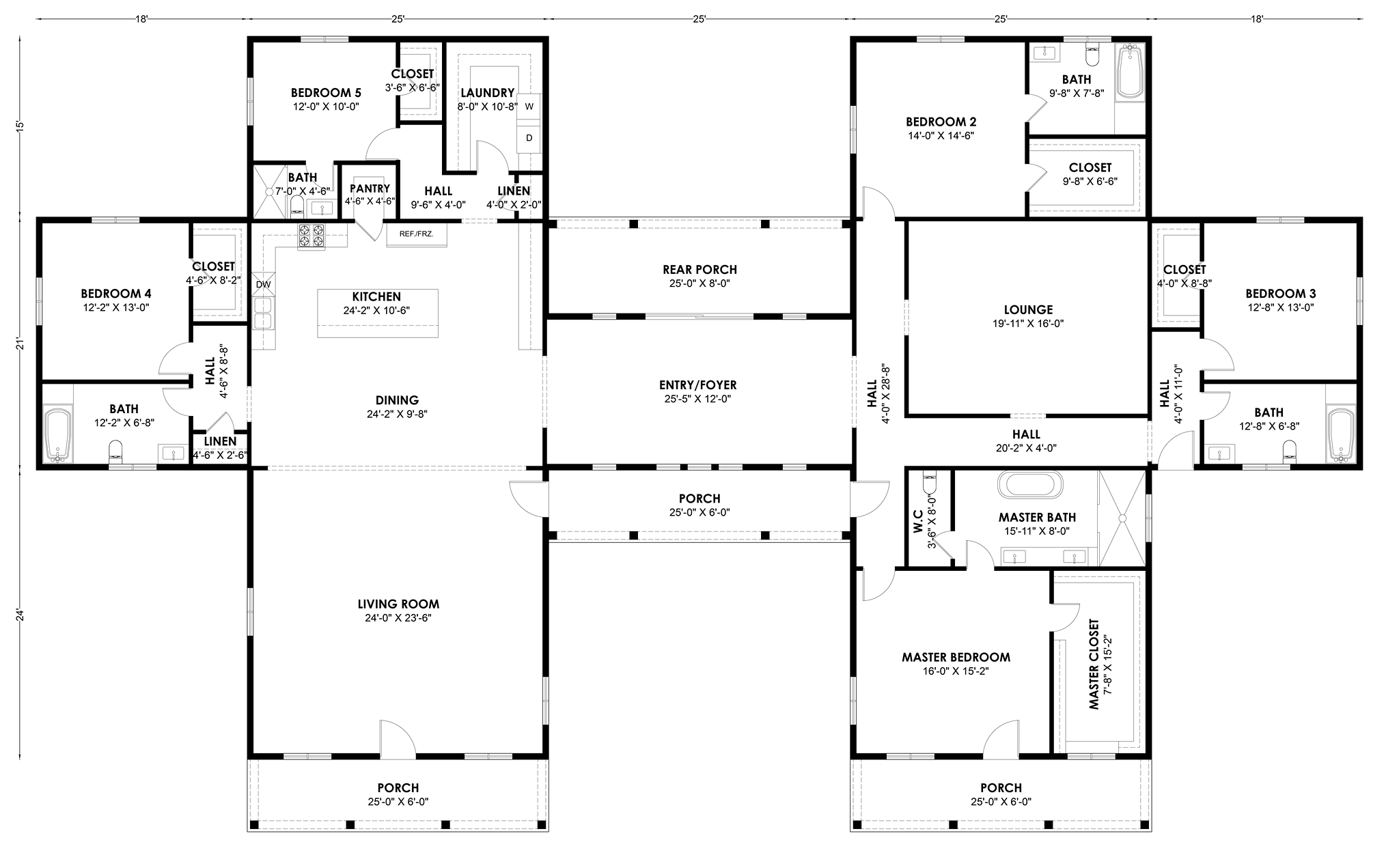

Layout

• Center: A 25-foot entry foyer between front and rear porches.
• Left Wing: A 24-foot kitchen and dining room opening onto a 24' × 22'6" living room.
• Right Wing: A lounge, a bedroom at the back and the primary suite at the front.
• Outboard Blocks: One more bedroom on each outer wall, each with a bath beside it, which suits adult children or long-stay guests.

Who It Suits

Households with adult children or frequent guests who each want a bath of their own, on a wide lot.

Plan Specs

Spec note: Width read as about 111 feet; one label on the drawing is partly obscured. The listing says 4 baths; the drawing appears to show five. The listing figure is shown.

What It Costs To Build

At a standard finish of $80–$120 per square foot of heated space, 3,000–3,999 sq ft comes to about $240,000 – $479,880. A high-end finish at $150 or more per square foot starts around $450,000. Land, site work, septic and utilities are extra, and porches price closer to shell rates.

An H has much more exterior wall than a rectangle of the same size, so plan toward the top of the range. How the H shape affects cost.

Lot Width Needed

130 feet or more of buildable width. Check this one against your setbacks first. Setbacks vary widely by county, so confirm yours before you buy a plan.
